Stage LED
BIG STAGE VISUALIZATION
In recent years LED displays have become the new standard for Big DJ stages. Their bright image
displays, ease of use and declining rental costs make them an attractive option for live
stage shows. This product focus highlights a line-up of six LED displays from amongst a
vast array of options available in the market today.
Absen T5
Main Features include:
• Lightweight: 25kg/sqm, lightweight; 0.72sqm/panel, fast installation; significantly reduce
the operating cost of transportation.
• Excellent Display Effect: 110% color gamut and more than 5000:1 high contrast. The product
features high gray-scale, refresh rate and low brightness with high gray-scale rate.
• Multifunctional: Both indoor and outdoor use, panel structure is also suitable for rigging,
stacking and perimeter banner.
• Friendly Structure Design: 8:9 ratio, easy to build 16:9, user-friendly designed frames for
easy handling.
• Applications: Suitable for events, touring and sports.
Tech Specifications:
• Pixel Pitch: 5.55 mm
• Brightness: 5000 nit
• Refresh Rate: 3840 H

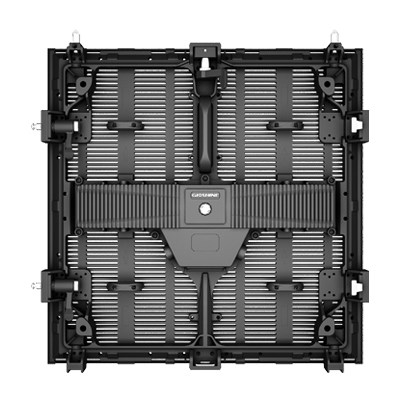

Gloshine ZM6.94
Main Features include:
• It has two kinds of cabinet versions, straight & curved.
• Support 90-degree accessibility.
• Hanging installation & Stacking Installation: Max 10 meters high
• Adapts to a variety of installation environments.
• Fast maintenance
• Eco-friendly material, anti-electrostatic, safe & reliable.
Technical Specification:
• Model No.: ZM6.94(Outdoor)
• Pixel Pitch: 6.94mm
• LED: SMD1921 (High frame)
• Pixel Density: 20736pixel/㎡
• Brightness: 800-1200nits/ 2000-2500nits
• Color Temperature: 6500-9500k
• Scan: 1/9
• Panel Dimension (W*H*D): 500mm×500mm×66mm 19.7”×19.7”×2.6”
• Panel Resolution: 72×72pixel
• Panel Weight: 7.00kg/15.43lb
• Cabinet Material: Die casting aluminum
• Max Power Consumption: ≦700w/㎡
• Average Power Consumption: ≦350w/㎡
• Viewing Angle: H: 160º V: 140º
• Refresh Rate: 1920Hz
• Gray Scale: 14-16bit
• IP Rating: Front IP65, Rear IP54
• Operating Humidity: 10%-90%RH
• Operating Temperature: -20℃～+40℃
• Max. Stacking: 20pcs
• Max. Hanging: 20pcs
• Curve (Optional): -7.5°~+7.5°
• Lifetime: 50,000 hrs
• Storage Temp/Humidity: -40℃～+60℃；10%-60%RH

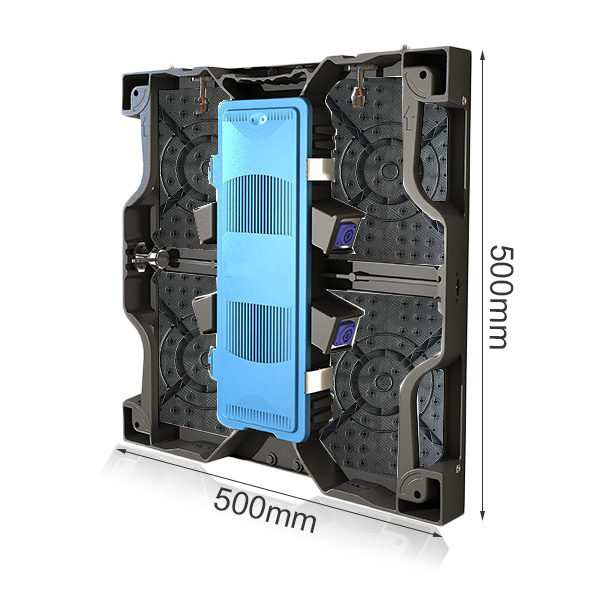

Htile Display P5.95
Main Features include:
• It’s size can be 500*1000 or 500*500mm.
• The ultra-lightweight cabinet is made of aluminum, which gives it extra strength.
• Cabinet of Lightweight LED Screen is designed with perfection, making it easy to install.
• The quick-lock feature requires no technical skills to install and uninstall.
Technical Specification:
• Item: Outdoor Rental Aluminum Display
• Pixel Pitch（mm): 5.95mm
• Pixel density（dot/m2): 25600
• LED Type: 2727
• Viewing angle: H:140°,V：140°
• Brightness（nits) : ≥6000
• Drive Method: 1/16
• Refresh Rate（Hz): 1920
• Module Size（mm): 250×250×18
• Cabinet Size（mm）: 500×500×77
• Cabinet Material: Die casting aluminum
• Cabinet weight（kg）: 8kg
• Voltage: 110/240V
• Average power（W / m2）:300
• Max power（W / m2）: 700
• IP Grade: IP65/IP54
• Operating temperature: temperature：-20℃～ 50℃ humidity：10～90%RH
• Storage temperature: temperature：-40℃～ 60℃ humidity：10～90%RH
• Lifetime(h): ≥50000
• Compliant Standard: CCC、CE.
• Control system: Linsn or Novastar

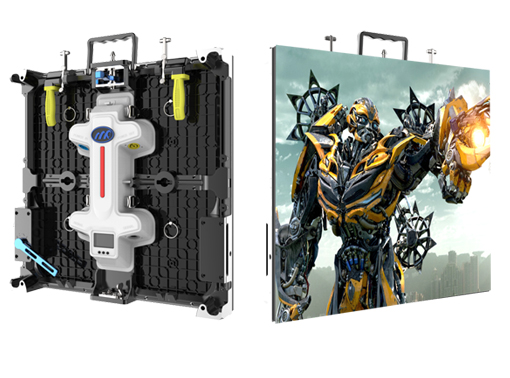

MrLED Rental AF Series
Main features:
• Intelligent Connection: It’s cabinet position can be adjusted freely when assembled; the network cable can be removed arbitrarily after installation, and after powering on, a key can connect the full screen automatically through the controller button to achieve easy operation.
• Modular Design: The cabinet consists of box components, modules with highly Integrated design; the installation of different pixel of the module size is unified, which can be interchanged and shared.
• Integrated Connection: Module and adapter board and the aviation plug, both use hard coonection, effectively enhancing the stability of the product.
• Low Brightness, High Grayscale, no Ghosting: With low brightness, perfect gray with a rich sense of layering and color saturation, the screen is very clear and clean without protracted superimposed picture and ghost phenomenon.
• Easy Maintance: When a single cabinet fails, rapid replacement can be achieved through the quick disassemble and assemble power box, without affecting the other cabinet.
Tech Specifications:
Module: AF048
• Pixel Pitch: 4.81 mm
• Brightness: ≤3000 nits
• Refresh Rate: ≥1920 Hz
• Driving Method: 1/13 scan
• Grey level: 43264 Level
• Color Display: 281 trillion
• LED Type: SMD2727
• IP Grade: IP65/IP54
• Power consumption (Max/Average): 350/140 W/sq.m
Cabinet
• Module Size (mm): 250×250×17 mm
• Cabinet Size(mm): 500×500×95 mm
• Cabinet Material: ADC12
• Cabinet weight(kg): 8.5kg
• Cabinet resolution: 104×104 Pixels
• Pixel density: 10816 Pixels/sq.m
Application environment
• Input AC power voltage: 110V-240V
• Working temperature: -20℃~50℃
• Working humidity: 10%-95%RH
• Signal type(with video processor): AV, S-Video, VGA, DVI, HDMI, SDI, DP
• Control distance: HSYV: <100m; SMF: <10km

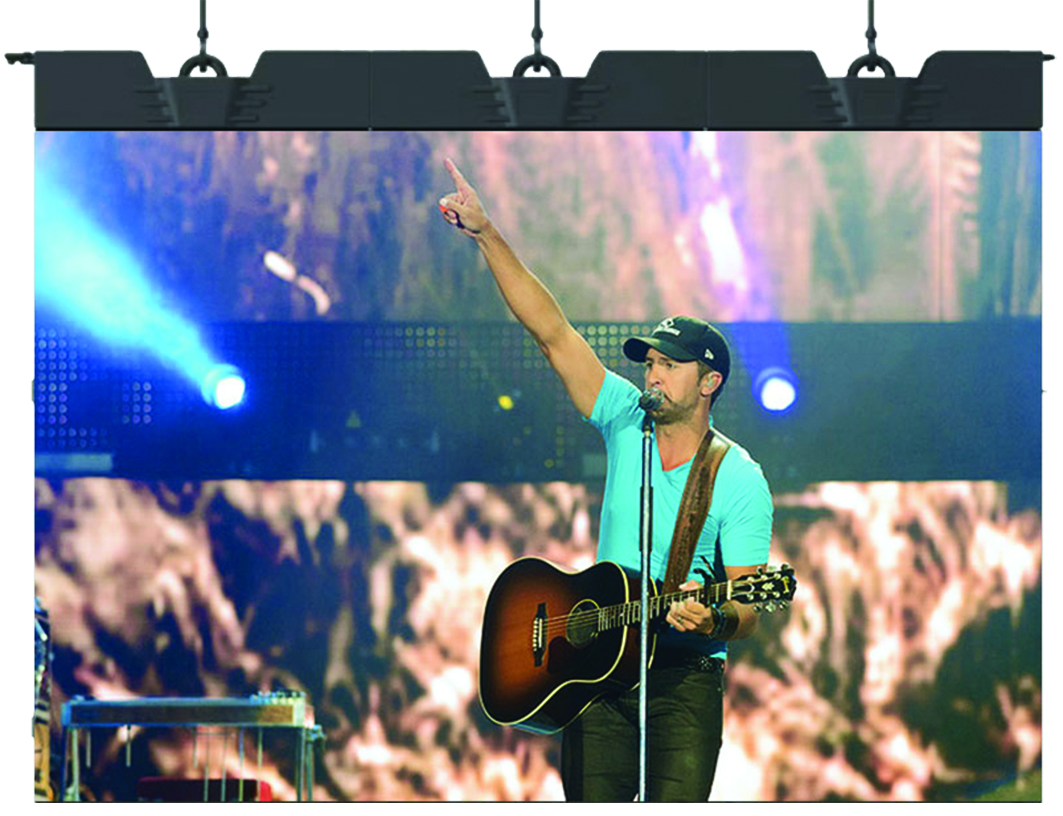

PixelFlex FlexTour
FLEXTour is a robust, High Definition curve-able 500 x 500mm LED video display
designed for the high demands of the touring production world. Each tile is modular in
design with unique rigging capabilities for traditional and unique off set designs.
Each tile front serviceable with magnetic modules for easy on-site maintenance. Its
integrated climbing ladder allows technicians quick access to displays flown overhead.
Built with the highest standard in components including the new A8S Novastar receiving
card, FLEXTour is the premier rental staging product on the market.
Main features include:
• Locating Pins: Quick Seat locating pins ensure perfect alignment and proper seating on LED cabinets each time
• Fast Change Power and Data: It has modular twist lock and play connections for rapid change of data and power enclosure.
• Integrated Corner Protection: It’s corners are protected by an integrated cover that rotates in and out of place on all four corners for transit and staging.
• Offset Tile Interlocking: With it’s top and bottom, interlocking hardware, the FLEXTour can be built in offset configurations for yet additional creative freedom in your LED Designs.
• High Accuracy Curving: Each cabinet allows for 15 degrees convex and concave curving allowing for creative freedom in your production designs.
• Road Ready: Full touring carts that hold 24 tiles are available to decrease load in and load out efficiency. Traditional casing is designed to hold 16 tiles which slide in with the LED’s facing up to help protect each tile. Each case also holds 8 rigging headers.
Technical Specification:
• Pitch: 2.84-6.9mm
• Pixels/PSM: 3,600-22,500
• Brightness: 1200-4500 NIT
• Refresh Rate: 3840Hz
• Panel Size: 500 x 500 x 90mm / 37.79 x 37.79 x 4.13 In
• Weight: 9Kg / 21.4Lbs
• Avg. Power Consumption: 240 W/per Cabinet
• Max Power Consumption: 700 W/per Cabinet
• Weather Rating: IP 65 / IP45

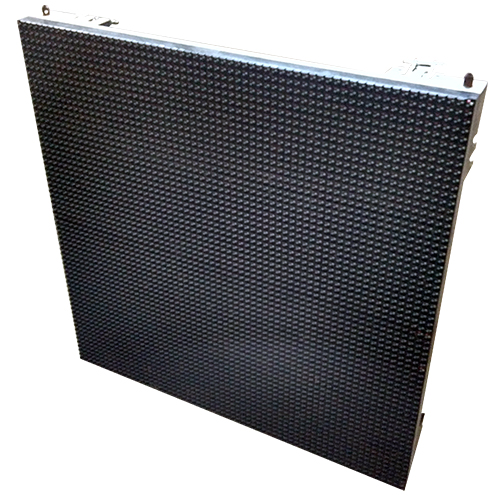

Video Wall VWI 10 mm
The VWI 10 mm is an outdoor LED screen manufactured using the highest quality LED
components offering stunning brightness, contrast and color reproduction. It has an IP65
waterproof rating, which means that they are built to withstand all weather conditions.
These outdoor LED screens has a much higher brightness than its indoor counterpart, in order
to deliver bright and vibrant images, even in direct sunlight.
Technical Specification:
• Model: P10
• Pixel pitch: 10mm
• Pixel configuration: 1R1G1B\
• Pixel matrix per panel: 32*16pixels
• Module resolution rate: 32*16=512dots
• Module dimensions (W*H): 320*160
• Driving mode: 1/16 scan, constant current
• Brightness: ≥6000 cd/m2
• Cabinet dimensions (W×H): 640*640mm
• Cabinet Resolution: 64*64=4096dots
• Viewing angle (H/V): H/V 140°/120°
• Best viewing distance: ≥10m
• Protection: IP65 & IP54
• Gray scale per color: 12-16bits for red,green,blue
• Life time: ≥100,000 hours
• MTBF: ≥10,000 hours
• Refresh rate: ≥ 480Hz
• MAX. Power: ≤580 W/m2
• Input voltage (AC): 110V ~ 240V
• Operating temperature: -20°C ~+ 50°C
• Operating humidity: 10% ~ 90%
• Control system: Nova
• Operating System: Windows 7 to 2010
