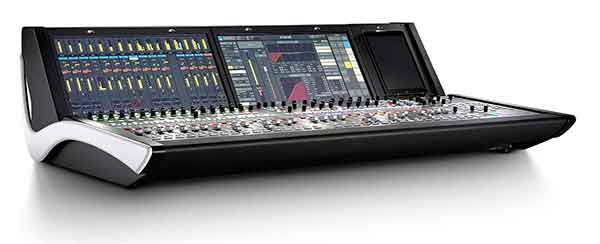

Lawo Announces Next-Generation Console Core and Most Compact mc² Mixing Console




Lawo has unveiled the Phase II of its powerful A__UHD Core audio engine, and the next generation of Lawo’s most compact, feature-filled all-in-one mixer: the mc²36 audio production console.

Both products are designed to deliver maximum output using minimal space, weight and power requirements. The native-IP A__UHD Core has just become Lawo’s new console core for mc² consoles and takes a decisive lead in processing power per cubic centimeter by delivering 1,024 channels of mc²-quality audio processing in just 1RU, while dramatically cutting power consumption. The new mc²36 mixer raises the audio production bar by more than doubling the DSP channel count of the original, as well as introducing an ultra-compact 16-fader version that delivers big performance in the smallest mc² footprint ever. And a major new feature, IP Easy, makes managing IP network devices simpler and more intuitive than ever before.

“UHD stands for ultra-high density,” explains Christian Struck, Lawo’s Senior Product Manager, Audio Production. “And it lives up to its name. A__UHD Core combines minimum size with maximum performance. It has everything a live production console needs, including 1,024 channels of mc²-grade processing algorithms, multiple sets of monitoring matrices, downmixing and upmixing, and is ready for next-generation audio formats such as Dolby Atmos and MPEG-H. It packs the power of systems formerly requiring 7 to 10 RU into just one rack space; weighs only 7 kg versus the 20 to 25 kg of a traditional console core. Even more astounding: it consumes only 220 watts of power.”



Lawo’s new A__UHD Core is a native IP device, designed from the start to work within IP networks and manage networked devices. As such, it is based fully on open standards such as ST2110-30/-31, AES67, RAVENNA, Ember+ and NMOS. And it’s designed for both 48 kHz and 96 kHz operation.

“New capabilities in the mc²36 provide customers who need a small console something they’ve never had before — an IP-native mixer, with outstanding DSP power and comprehensive I/O connectivity. Furthermore, the new console does not only provide best in class IP connectivity, but also Lawo-grade microphone inputs and line outs, and also AES3 and a built-in MADI port for legacy equipment,” says Lucas Zwicker, Senior Technical Product Manager, Audio Production.
