DJ Controller


Spotlight on DJ Controllers launched in 2018-2019.


Akai Pro Force


The Akai Pro Force fuses clip-launching, step sequencing, sampling, synth engines, and a tactile touch screen control into a standalone, performance-driven device. It comes preloaded with 10GB+ of sounds including SampleTools by CR2, MSX Audio and Sample Magic.

Main Features include:

  • Import stems, loops and one-shots into Force’s 8x8 clip matrix.
  • Assign tracks to Force’s crossfader and load full tracks
  • Connect to a wireless network and sync projects with any Ableton Link compatible application or hardware device.
  • Dual custom real-time time stretch algorithms and auto BPM detection.
  • Dedicated cue assign controls and a cue mixer.
  • Browse the library or create samples loaded from USB thumb drives or SD cards.
  • Four premium synth engines, each with full editing capability.
  • Load multi-sampled instrument keygroups and playback samples chromatically via a MIDI keyboard or Force’s pads.
  • Resample clips or capture audio from Force’s collection of inputs and loop.

Technical Specification:

  • Pads: (64) velocity- and pressure-sensitive pads, RGB-backlit
  • Knobs: (8) 360° touch-sensitive Knobs, (1) 360° encoder for display navigation and selection via push, (5) 270° knobs for gain, mix & level adjustment
  • Buttons:(56) dedicated function buttons;
  • Display: 6.9” / 176 mm (diagonal), 5.9” x 3.7” / 150 x 93 mm (width x height), Full-color LED-backlit display with touch interface
  • Connections:
    • (2) XLR+1/4” (6.35 mm) TRS inputs (Input 1/2)
    • (4) 1/4” (6.35 mm) TRS outputs (2 pairs)
    • 1/4” (6.35 mm) stereo headphone output
    • 1/8” (3.5 mm) MIDI input
    • 1/8” (3.5 mm) MIDI output
    • 1/8” (3.5 mm) MIDI thru port
    • (4) 1/8” (3.5 mm) CV/Gate outputs
    • Ethernet link port
    • USB Type-A ports
    • USB Type-B port
    • SD card slot
    • power adapter input

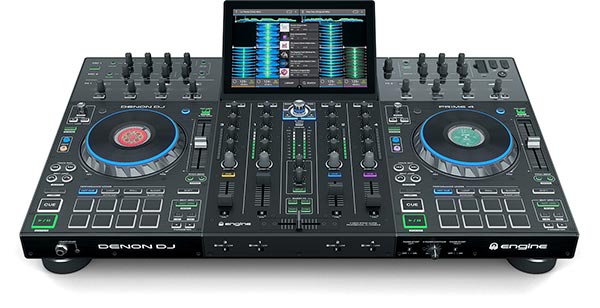

Denon DJ Prime 4


DJ Prime 4 is a standalone 4 deck DJ system with a 10” touchscreen. It has a multicore processor that makes the entire music collection available without the need of a laptop.

Main Features include:

  • Entertain two separate audiences at different locations simultaneously.
  • View 4-deck, horizontal or vertical waveforms, Search, select and load tracks, Create playlists and crates on-the-fly with the 10” touchscreen.
  • Dedicated XLR Zone output with gain and EQ control.
  • 4-channel line faders, each with 3-band EQ and gain, Single encoder, sweep FX including filter control, Mainstage quality Post-Fader FX, User-replaceable crossfader.
  • Dedicated mic channels, Control EQ, dedicated TRS mic.
  • Ultra-responsive, touch-capacitive jog wheels, Central HD display, RGB light customizable.
  • 14 class-leading FX, Individual effect selector, and parameter controls, Crystal clear OLED screens, Effects ‘on/off’ and ‘beats’ buttons for dynamic punch-ins.

Technical Specification:

Audio

  • Bit Depth:24-bit
  • Sampling Rate:44.1kHz
  • Dynamic Range:> 117dB (A-weighted)
  • Frequency Response:20Hz to 20kHz (+/-1dB)
  • Signal-to-Noise Ratio:> 93dB (A-weighted)
  • Headroom:
    • Line: > 15dB
    • Microphone: > 20dB
    • Outputs: > 20dB

Displays

  • Main:
    • 10.1” / 257 mm (diagonal)
    • 8.5” x 5.5” / 216 x 139 mm (width x height)
    • Full-color LED-backlit display with touch interface
  • Jog Wheel:
    • 2.2” / 56 mm (diameter)
    • Full-color LED-backlit display
  • FX:
    • 128 pixels wide x 32 pixels high
    • Black & White OLED display

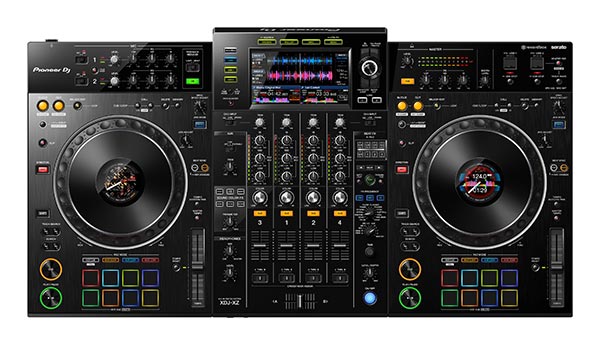

Pioneer DJ XDJ-XZ


The Pioneer DJ XDJ-XZ is a full-sized, professional all-in-one DJ controller with a 4-channel system and multiple inputs and outputs. It works with Serato and Rekordbox and comes with 14 professional Beat FX and 6 Sound Color FX.

Main Features include:

  • Full-size jog wheels and color On Jog Display for track information.
  • Use a USB drive loaded with rekordbox-analyzed tracks or use a laptop to use rekorbdox dj or Link Export mode.
  • Clear audio with a 64-bit digital signal processor and fine-tuning with the 3-band master output EQ.
  • Connect CDJs to sync the audio. Use XDJ-XZ’s screen to browse external libraries.
  • Display Waveforms, Hot Cues, BPM, via the 7-inch LCD touch screen.

Technical Specification:

  • Supported music file formats: AAC, MP3, WAV, AIFF
  • File Systems: FAT, FAT32, HFS+
  • Included DJ Software: Rekordbox DJ
  • Compatible DJ Software (not included): Serato DJ Pro (coming early 2020); rekordbox video (paid upgrade)
  • DVS Control: Serato DVS (Paid Upgrade); rekordbox DVS (paid Upgrade)

Other Specifications

  • Width: 878mm
  • Height: 118.4mm
  • Depth: 466.1mm
  • Weight: 13kg
  • Frequency Range: 20 – 20000Hz
  • Signal-to-Noise Ratio: 114dB (USB)

Performance Control

  • Channels: 4
  • Deck Control: 2 (USB Storage Device)/ 4 (DJ Software Control)
  • Jog Wheel: 206mm
  • Sound Color FX: Space, Dub Echo, Sweep, Noise, Crush, Filter
  • Beat FX: Delay, Echo, Filter, Flanger, Helix, Phaser, Ping Pong, Pitch, Slip Roll, Spiral, Reverb, Roll, Trans, Vinyl Brake

Terminals

  • Inputs: 2 Line (RCA), 2 PHONO (RCA), 1 AUX (RCA), 2 MIC (XLR & ¼ inch TRS Jack)
  • Outputs: 2 MASTER (XLR, RCA), 1 BOOTH (1/4 inch TRS Jack), 2 PHONES (1/4 inch stereo jack, 3.5mm stereo mini-jack)

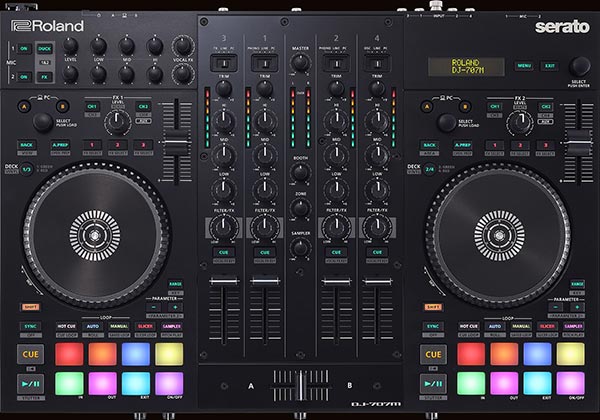

Roland DJ-707M


The DJ-707M is an integrated live sound console, loudspeaker management system and a full-fledged performance DJ controller.

Main Features include:

  • 10 onboard scene presets for creating create ‘go-to’ event settings for audio routing, loudspeaker management and system setups
  • Master, booth, and zone outputs with independent speaker management processors
  • Built-in feedback suppression listens out for feedback adjusting the speaker output automatically
  • Dual USB Ports for seamless DJ changeover or backup laptop connection
  • Up to 4 inputs for guest performer with front-facing dual 1/4-inch jacks or 1/8-inch stereo aux input
  • Fully assignable zone output with dedicated level control for creating separate mix
  • Ideal size for DVS – fits perfectly between turntables and DJ media players
  • Serato DVS Upgrade Ready
  • Mic section can handle anything from straightforward speeches and announcements to pitch-corrected karaoke throw downs
  • Studio-quality microphone preamps with independent gain, low-cut, and noise gate on each channel
  • Console-class mic EQ and effects
  • Dedicated hardware effects from clean reverbs and delays to key-based auto-pitching and auto-ducking
  • Up to four mic inputs
  • Full Serato DJ Pro support for hot cues, loops, rolls, pitch play, slicer, and more
  • Fully adjustable crossfader with full-range curve settings and software-adjustable crossfader margin
  • Channel filter and FX with dedicated Filter/FX knob on each channel
  • Phono/Line Level Inputs – use DJ-707M as a mixer with turntables and CD decks
  • 5-Pin MIDI Output – sync with external synths, samplers or lighting rigs
  • TR Drum machine on Deck 3, with classic TR-808 and 909 drum loops
  • Oscillator mode on Deck 4 for sweepers, synth stabs, and other onboard DJ sound effects.

Technical Specification:

  • Signal Processing: Sampling Frequency = 48 kHz
  • Scene Memory: 10
  • Input Impedance –
  • INPUT (1–4) (RCA phono type): 47 k ohms or greater,
  • MIC IN (XLR type): 7 k ohms or greater,
  • AUX IN (1/4-inch TRS phone type, AUX/MIC): 30 k ohms or greater/ 7 k ohms or greater
  • AUX IN (Stereo miniature phone type): 10 k ohms or greater

Output Impedance –

  • Master Out 1: 600 ohms (balanced),
  • Master Out 2: 1 k ohm (unbalanced),
  • Booth Out: 600 ohms (balanced),
  • Zone Out: 1 k ohm (unbalanced),
  • Phones: 44 ohms
  • Frequency Response: 48.0 kHz: 20 Hz–22 kHz (+0/-2 dB)
  • Display: 16 characters, 2 lines (backlit LCD)

Size and Weight

  • Width: 474 mm, 18-11/16 inches
  • Depth: 331 mm, 13-1/16 inches
  • Height: 73 mm, 2-7/8 inches
  • Weight: (excluding AC adaptor) - 3.5 kg, 7 lbs 12 oz

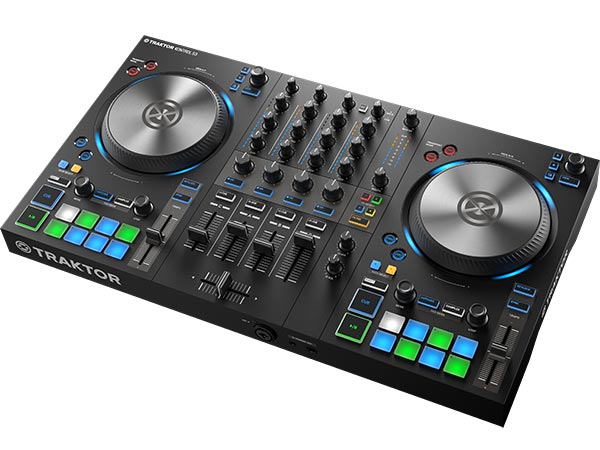

Traktor Kontrol S3


Native Instruments Traktor Kontrol S3 is a four-channel performance oriented controller with upsized jog wheels, extended pitch, a mixer section with EQ, filter and Mixer FX controls and channel faders. Traktor Kontrol S3 comes paired with the full version of Traktor PRO 3.

Main Features include:

  • Full-length faders, EQ, cueing, eight RGB pads and Mixer FX control over each deck.
  • Large jog wheels for scratching.
  • Choose from eight effects and three filters.
  • Pro-grade XLR and RCA main outputs, a ¼” TRS booth output, and 3.5 / 6.3 mm headphone outputs.
  • Trigger loops for extended mixes, track manipulation, and re-edits.

Technical Specification:

Audio –

  • Channels: 4 out / 2 in
  • Sample Rate / Resolution: 44kHz/48kHz – 24 bit

Main Out (Balanced - Xlr) –

  • Signal Level: 18.7 dBu
  • THD+N: 0.001%
  • Freq Resp: +/- 0.1 dB
  • Channel Separation L/R: <-107
  • Crosstalk: -106 dB
  • Dynamic Range: 111 dB

Booth Out (Balanced - Trs) –

  • Signal Level: 18.7 dBu
  • THD+N: 0.009%
  • Freq Resp: +/- 0.1 dB
  • Channel Separation L/R: <-107
  • Crosstalk: -109 dB
  • Dynamic Range: 111 dB

Headphone Out @32 Ω (Stereo Unbalanced - Trs) With 12v Psu/Usb Powered

  • Signal Level: 7.7 dBu/-16.5 dBu
  • THD+N: 0.015%/ 0.001%
  • Freq Resp: +/- 0.1 dB/+/- 0.1 dB
  • Channel Separation L/R: -65 dB/ 64 dB
  • Crosstalk: <-105 dB/<-81 dB
  • Dynamic Range: 109 dB/ 85 dB

Mic In (Balanced - Xlr/Trs)

  • Signal Level: -10 dBu
  • THD+N: 0.002%
  • Freq Resp: +/- 0.03 dB
  • Dynamic Range: 97 dB

Current Issue : November - December 2022
Read/Download

OR

Flipbook

OR

To The FREE Digital Magazine And Newsletters

Archives

Palm Expo Magazine Sep Oct 2022 Palm Expo Magazine Sep Oct 2022
Palm Expo Magazine July Aug 2022 Palm Expo Magazine July Aug 2022
Palm Expo Magazine May-June 2022 Palm Expo Magazine May-June 2022
Palm Expo Magazine Mar Apr 2022 Palm Expo Magazine Mar Apr 2022
X
