Stage Microphones

Live Sound Essentials


A microphone is perhaps the most important link, in the audio chain that transmits an artist’s voice to the audience. Clear audible sound is what excites the audience and to achieve this kind of sound, a microphone par excellence is a must. In this product focus PT profiles some live microphones launched in 2018 - state-of-the-art and some new to Indian market.

AKG C636


AKG C636 master reference handheld vocal condenser microphone has a custom-tuned capsule. It is made to capture a vocal performance in all its nuances while rejecting feedback, handling noise, and pops.

Main Features Include:

  • Its proprietary double shock suspension system greatly reduces handling noise, even during the most energetic on-stage performances. Its capsule sits on a highly absorbent rubber bearing, eliminating any structure-based noise, while an adjustable balancing network cancels vibration over a wide frequency range.
  • The protection system spares no expense and consists of the grille, a foam layer behind the grille and a magnetically attached computer-modeled mesh layer on top of the capsule. This triple-layer protection system is virtually unique to AKG and is not found in any microphone remotely near this price range.

Technical Specifications:

  • General Specifications
    • Type: 3/4” Back electret condenser
    • Polar Pattern: Cardioid
    • Sensitivity: 5.6 mV/Pa
    • Audio frequency bandwidth: 20 - 20000 Hz
    • Electrical impedance: 200 Ohms
    • Recommended load impedance: 2000 Ohms
    • Equivalent noise level: 20 dB-A
    • Signal to Noise: 74 dB-A
    • Max. SPL for 1 % THD: 150 dB
    • Operating temperature range: -10 to 60 Celsius (14 °F - 140 °F)
    • Bass cut filter: 80 Hz, 12 dB/octave
  • Dimensions
    • Length: 185 mm
    • Diameter: 51 mm
    • Net Weight: 312 g
  • Powering Interface
    • Voltage: 48 V
    • Current: 4 mA

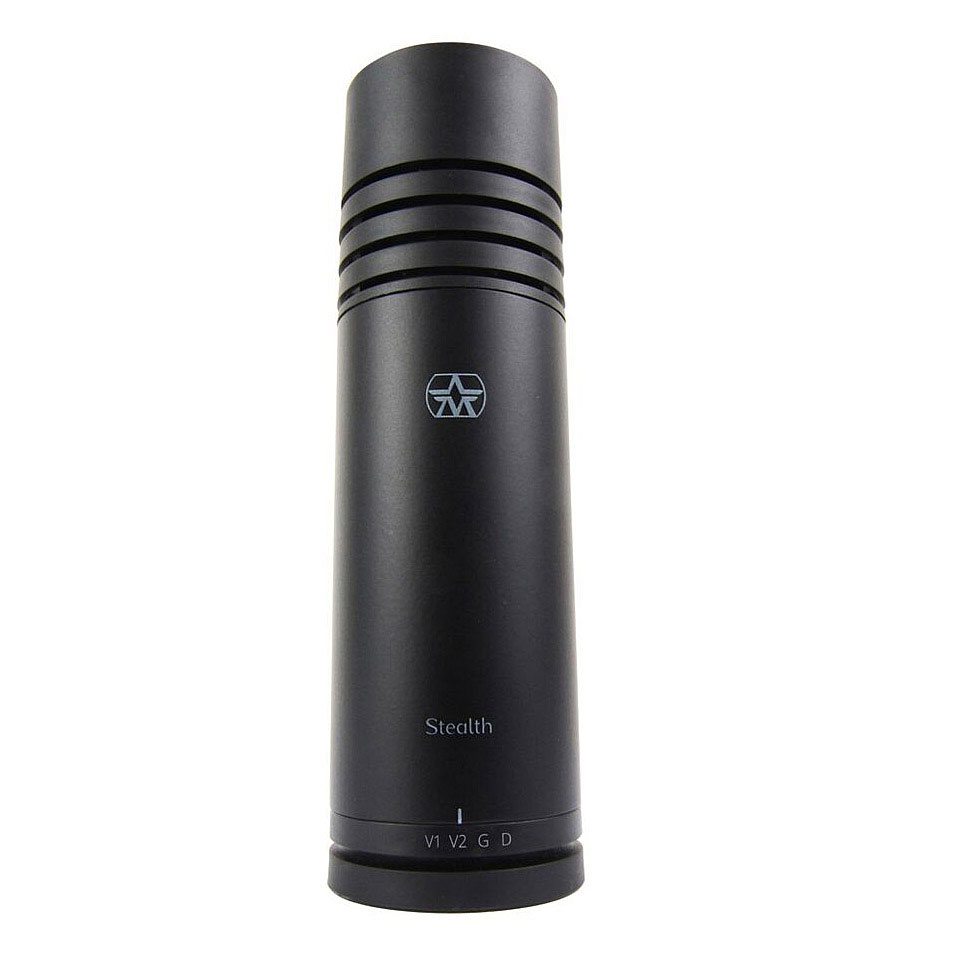

Aston Microphones Stealth


The Aston Stealth for stage with 4 switchable voices delivering unparalleled performance in almost any situation. A Class A built in mic preamp with autodetect 48V Phantom power (a world’s first!) and featuring a unique Sorbothane internal shock mount system and Aston’s legendary build quality, we reckon Stealth is the world’s most versatile microphone.

Main Features Include:

  • Four settings, four different voices: There are 2 vocal settings, optimized for different vocal tones, a guitar setting which is equally suited to Spanish guitar, Electric guitar cab and steel string acoustic, and a dark, vintage setting, reminiscent of classic ribbon mics.
  • Active & Passive modes with 48V Autodetect function: Stealth works with or without 48V phantom power. In passive mode (unpowered) the active circuit is completely bypassed, and Stealth operates with the simplest possible signal chain to give a beautifully clean sound
  • Built-in Class A Mic Preamp: When in active mode Stealth features a high-quality built-in Class A Mic Pre, dispensing with the need for an expensive external gain lifting device. Stealth features a fully balanced signal path from capsule to output, yielding a superior reduction of ‘Common Mode’ noise compared with single-ended (unbalanced) designs.
  • Unique Sorbothane internal shock mount: Sorbothane is a synthetic viscoelastic urethane polymer used as a vibration damper and acoustic shield used in computing, hi-fi and many industrial applications.
  • Exceptional side rejection: Stealth’s acoustically tuned headstock provides a highly focused cardioid polar pattern with enhanced off-axis rejection.

Technical Specifications:

  • Transducer Type: Moving coil
  • Directional Polar Pattern: Cardioid
  • Frequency Response: 20Hz – 20kHz (+/-3dB)
  • Equivalent Self Noise Level: 10dB A-weighted
  • Sensitivity at 1kHz into 1kohm - passive mode: Average 1 mV/Pa (varies across 4 voices)
  • Sensitivity at 1kHz into 1kohm - active mode: Average 150 mV/Pa (varies across 4 voices)
  • Maximum SPL for THD 0.5%: 140dB
  • Product length: 196 mm / 7.72 in
  • Product width: 58 mm / 2.28 in
  • Product weight: 692 g / 1.52 lb

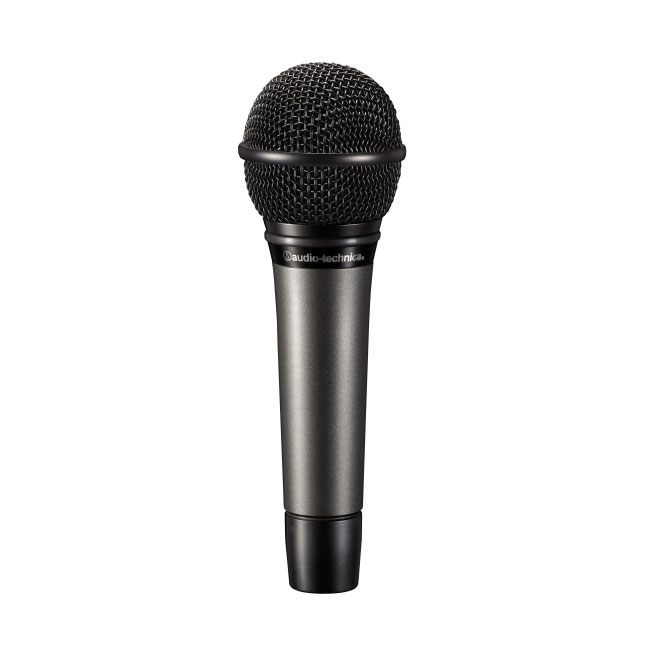

Audio-Technica ATM510PK


The ATM510PK vocal microphone pack gives you a set of three ATM510 cardioid dynamic handheld microphones that are tailored for smooth, natural vocal reproduction.

The ATM510 features a cardioid capsule that reduces pickup of sounds from the sides and rear, maximizing isolation from other sound sources and minimizing feedback. It is equipped with a rare-earth magnet for improved output and transient response and has specially designed internal shock mounting for reduced handling and stage noise. The microphone’s durable, all-metal construction ensures long-lasting performance, while its multi-stage grille design offers excellent protection against plosives and sibilance without compromising high-frequency clarity.

Main Features Include:

  • Pack includes three ATM510 cardioid dynamic handheld microphones, three AT8470 Quiet-Flex stand clamps, three 5/8"-27 to 3/8"-16 threaded adapters, and three soft, protective pouches
  • Superior internal shock mounting reduces handling and stage noise
  • Tailored for smooth, natural vocal reproduction
  • Cardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of desired sound source
  • Durable performance for professional applications
  • Rare-earth magnet for improved output and transient response
  • Excellent off-axis rejection for minimum feedback
  • Multi-stage grille design offers excellent protection against plosives and sibilance without compromising high-frequency clarity
  • Quiet-Flex stand clamp provides silent, flexible microphone positioning
  • Corrosion-resistant contacts from gold-plated XLRM-type connector
  • Rugged, all-metal design and construction for years of trouble-free use

Technical Specifications:

  • Element: Dynamic
  • POLAR PATTERN: Cardioid
  • FREQUENCY RESPONSE: 90-16,000 Hz
  • OPEN CIRCUIT SENSITIVITY: –55 dB (1.7 mV) re 1V at 1 Pa
  • IMPEDANCE: 300 ohms
  • WEIGHT: 258 g (9.1 oz)
  • DIMENSIONS: 170.0 mm (6.69") long, 53.7 mm (2.11") diameter
  • OUTPUT CONNECTOR: Integral 3-pin XLRM-type
  • ACCESSORIES FURNISHED: AT8470 Quiet-Flex stand clamp for 5/8"-27 threaded stands; 5/8"-27 to 3/8"-16 threaded adapter; soft protective pouch
  • AUDIO-TECHNICA CASE STYLE: T6

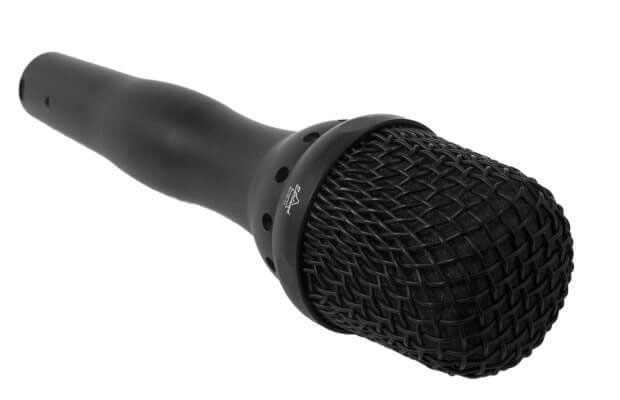

Ehrlund EHR-H Microphone


EHR-H is a handheld condenser microphone that is optimized for live performances. The core of its ability to reproduce sound is the same as in all Ehrlund microphones: A unique triangular Ehrlund membrane combined with our patented phase and frequency linear electronics. The triangular shape of the Ehrlund membrane dampens resonance faster than a traditional round or even square membrane. The positive effects of this construction design are unparalleled. Sharp tones sound more natural, the intricate resolution of sound-waves travelling along a triangular surface allows complex signals to be reproduced in their natural form.

Main Features Include:

  • Handheld condenser microphone
  • Optimised for use in live environments
  • Patented triangular capsule design
  • Transparent and natural sound
  • Great low-noise performance
  • Phase and frequency linear
  • Natural reproduction of fast transients
  • Colouring of sound is negligible and true to the original source
  • Frequency range spans from infrasonic bass to ultrasonic treble
  • Low energy consumption, ~2.0 mA

Technical Specifications:

  • Type: Handheld condenser microphone
  • Pickup pattern: Cardioid
  • Frequency range: 7 – 87,000 Hz
  • Sensitivity at 1kHz: -42 dBV/Pa (8 mV/Pa)
  • Impedance: Handles all impedances
  • Equivalent noise level: < 9 dBA
  • Signal-to-noise: 85 dBA
  • Dynamic range: 127 dB
  • Max SPL (peak) Clip: 155 dB
  • 0.5% THD: 131 dB
  • 1% THD: 136 dB
  • Power supply: 48 V Phantom power
  • Current consumption: 2.0 mA
  • Connection: XLR 3-pin
  • Measurements: Ø53 mm x 182 mm
  • Weight: 272 grams

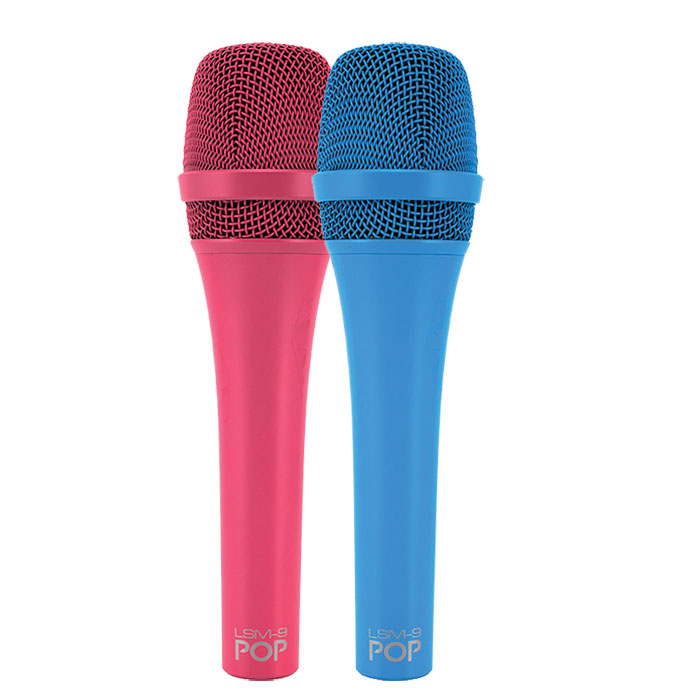

MXL POP LSM-9


The MXL POP LSM-9 Microphone is a brightly colored dynamic stage mic that bridges the gap between the professional stage and at-home entertainment systems. Perfect for on-stage performers looking to stand out, the POP LSM-9 uses high-quality components to produce a remarkable sound, and is specially crafted to cancel vibrations and handling noise for a clean, clear performance. Bands, vocal groups, and pro karaoke singers alike will be impressed with the POP LSM-9's clear sound and durable, all-metal construction that is built to last night after night.

Main Features Include:

  • Available in four bright colors: Blue, Magenta, Yellow, and Green
  • Premium dynamic capsule for high-quality vocal performances
  • Super cardioid polar pattern for clear sound and reduced feedback
  • Designed to actively cancel vibrations and handling noise
  • Durable, all—metal construction
  • Perfect for stage and home use
  • Professional XLR input

Technical Specifications:

  • Type: Dynamic
  • Frequency Response: 50Hz -18kHz
  • Polar pattern: Cardioid
  • Sensitivity: -74dB (0dB=1V/µbar at 1KHz)
  • Impedance: 600 ohms
  • Size: 54.9mm x 200mm/2.16 in. x 7.87 in.
  • Weight: 363g/0.80 lbs
