Beta Three’s DT Series Professional Power Amplifier & TLA121-11 Line Array Speakers

Published 4th Sept, 2019

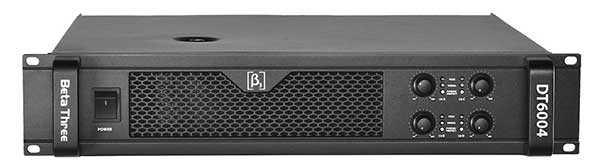

Beta Three DT6004

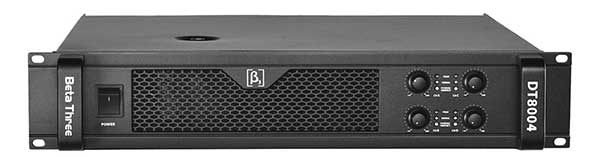

Beta Three DT8004

DT Series Professional Power Amplifier & TLA121-11: Dual 12” Line Array Speakers were introduced into the market early this year and are already receiving tremendous market response and reactions, helping to further enhance relationships with our customers.

A) PRO AMPLIFIERS:

1) DT Series Professional Power Amplifier

DT series is multi-channel professional amplifier is based on the efficient thermal distribution structure of security uses mature concise output circuit with precise detection and protection control, entirely designed for achieving the goal of outstanding reliability.

DT series meets the needs of multi-purpose sound reinforcement applications with standardization of design and complete product line.

Key Features:

• Multi-channel professional Power amplifier
• Available in 2 Channel and 4 Channel modes
• Operates within 8Ω and 4Ω loads
• Availability of Three optional sensitivity Switch
• Protect, peak and signal LEDs indicators for each channel
• High power supply system and efficient output level
• Housed in a rugged, all-steel 2U chassis
• Electronically balanced XLR inputs
• Amplifier protection includes short circuit, excessive temperature and DC on outputs

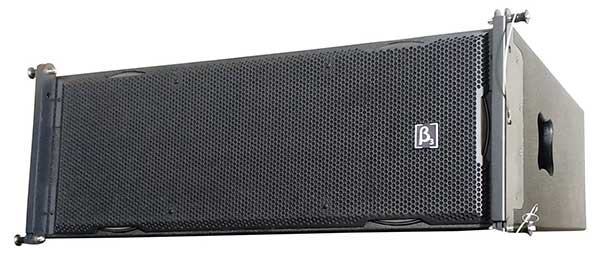

TLA-121II

B) LINE ARRAY SERIES:

1) TLA121-11: Dual 12” Line Array Speaker

TLA-121II is medium size line array speaker system, which can hang 12pcs TLA-121II speaker at its maximum in vertical direction.

TLA-121II adopts multi-functional structure design, suitable for live performance and fixed installation.

Key Features:

• Dual 3” Neo compression driver
• Dual 12” Neo woofer unit
• Dispersion angle 60° x 30°
• Frequency response 70Hz-17kHz (-3dB)
• Sensitivity: NF 99dB, FF 103dB
• Max SPL: NF 121dB/127dB(Peak), FF 124dB/130dB(Peak)
• The driver have function of overload protection
• Appropriate hanging frame with shackle for installation
